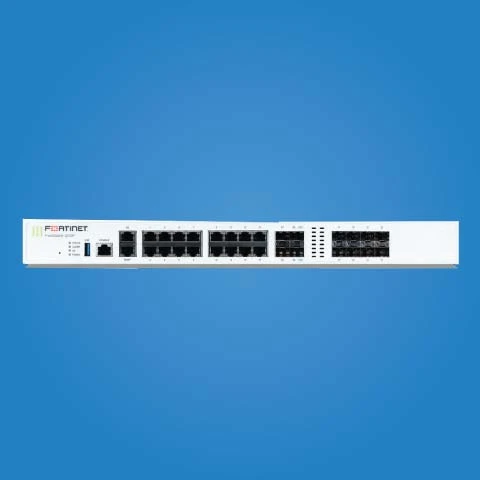

Do you want to secure your enterprise’s network with network partitioning and end-to-end automated, next-gen security features? The FortiGate 200F
Series firewalls are designed to achieve AI/ML-based network security and deeper visibility into the network to detect and prevent all kinds of threats.
They are the next-generation firewalls that deliver robust threat protection against cyber-attacks through the combined powers of AI and machine
learning. Monitor applications, users, and devices before they become major threats. The FortiGate 200F Series delivers deep, broad, mechanized,
and advanced edge protection to your web, content, devices, and networks. Visit the ServerBasket Online store to choose from different FortiGate
200F models. We have a comprehensive selection of verified and guaranteed 200F Firewalls at pocket-friendly prices. Get your order delivered to
all the corners of India promptly at no additional shipping costs, 1-year legitimate warranty, 7-day easy returns, and more such benefits, only at ServerBasket.
FORTIGATE 200F Specifications
|
BRAND |
FORTIGATE |
|
MODEL |
FG-200F |
|
Interfaces and Modules |
|
|
GE RJ45 Ports |
16 |
|
GE RJ45 Management / HA |
1 / 1 |
|
GE SFP Slots |
8 |
|
10 GE SFP+ FortiLink Slots (default) |
2 |
|
10 GE SFP+ Slots |
2 |
|
USB Port |
1 |
|
Console Port |
1 |
|
Onboard Storage |
0 |
|
Trusted Platform Module (TPM) |
Yes |
|
Bluetooth Low Energy (BLE) |
Yes |
|
Included Transceivers |
0 |
|
System Performance — Enterprise Traffic Mix |
|
|
IPS Throughput 2 |
5 Gbps |
|
NGFW Throughput 2, 4 |
3.5 Gbps |
|
Threat Protection Throughput 2, 5 |
3 Gbps |
|
System Performance and Capacity |
|
|
IPv4 Firewall Throughput (1518 / 512 / 64
byte, UDP) |
27 / 27 / 11 Gbps |
|
Firewall Latency (64 byte, UDP) |
4.78 μs |
|
Firewall Throughput (Packet per Second) |
16.5 Mpps |
|
Concurrent Sessions (TCP) |
3 Million |
|
New Sessions/Second (TCP) |
280 000 |
|
Firewall Policies |
10 000 |
|
IPsec VPN Throughput (512 byte) 1 |
13 Gbps |
|
Gateway-to-Gateway IPsec VPN Tunnels |
2000 |
|
Client-to-Gateway IPsec VPN Tunnels |
16 000 |
|
SSL-VPN Throughput |
2 Gbps |
|
Concurrent SSL-VPN Users (Recommended
Maximum, Tunnel Mode) |
500 |
|
SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
4 Gbps |
|
SSL Inspection CPS (IPS, avg. HTTPS) 3 |
3500 |
|
SSL Inspection Concurrent Session (IPS, avg.
HTTPS) 3 |
300 000 |
|
Application Control Throughput (HTTP 64K) 2 |
13 Gbps |
|
CAPWAP Throughput (HTTP 64K) |
20 Gbps |
|
Virtual Domains (Default / Maximum) |
10 / 10 |
|
Maximum Number of FortiSwitches Supported |
64 |
|
Maximum Number of FortiAPs (Total / Tunnel) |
256 / 128 |
|
Maximum Number of FortiTokens |
5000 |
|
High Availability Configurations |
Active-Active, Active-Passive, Clustering |
|
Form Factor (supports EIA/non-EIA standards) |
Ear Mount, 1 RU |
|
AC Power Supply |
100–240V AC, 50/60 Hz |
|
Power Consumption (Average / Maximum) |
101.92 W / 118.90 W |
|
Current (Maximum) |
100V / 2A, 240V / 1.2A |
|
Heat Dissipation |
405.70 BTU/h |
|
Redundant Power Supplies |
Yes (Default dual non-swappable AC PSU for
1+1 Redundancy) |
|
Power Supply Efficiency Rating |
80Plus Compliant |
|
Operating Environment and Certifications |
