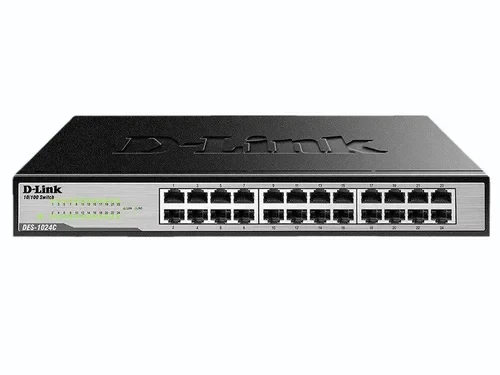

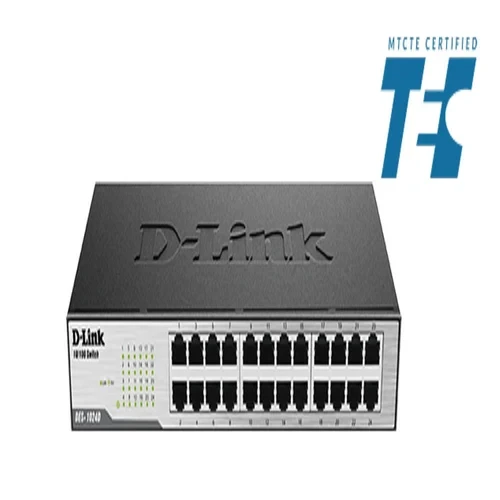

The D-Link DES-1024D is an unmanaged 24-port Fast Ethernet (10/100 Mbps) switch from D-Link’s “Express EtherNetwork” / “EtherNetwork” line. It is aimed at SOHO (small office / home office) and small-to-medium business environments where you need to expand network connectivity simply and cost-effectively. It supports plug-and-play operation with no configuration required, comes in a metal chassis, and can be used in desktop or rack-mount setups.
24 × 10/100 Mbps RJ-45 ports that automatically auto-sense speed (10 or 100 Mbps) and duplex (half/full) per port. Auto-MDI/MDI-X crossover detection on all ports, so you don’t need crossover cables or special uplink ports.
Store-and-Forward switching method, which helps filter and forward packets only after verifying their integrity.
Non-blocking wire-speed architecture, which means the switch can forward traffic at full capacity without internal bottlenecks.
Switching capacity of about 4.8 Gbps. MAC address table of approximately 8,000 entries.
Flow Control support (IEEE 802.3x) to help with congestion/packet loss.
Energy Efficient Ethernet (EEE / IEEE 802.3az) support to reduce power when ports are idle.
Metal chassis, fanless design (quiet operation), side vents for cooling.
Rack-mountable or desktop installation. It comes with rack-mount ears / kit in some regions.
Here’s a more structured spec sheet:
| Parameter | Spec |
|---|---|
| Ports | 24 × RJ-45 10/100 Mbps (Fast Ethernet) ports |
| Auto/NWay / Auto negotiation | Supported – speed, duplex, MDI/MDI-X |
| Switch fabric (backplane bandwidth) | Approx. 4.8 Gbps |
| Maximum forwarding rate | ~3.57 million packets per second (Mpps) |
| MAC Addresses table size | ~8,000 entries |
| Transmission method | Store-and-forward |
| Flow control | IEEE 802.3x supported |
| Energy saving / standards | IEEE 802.3az (Energy Efficient Ethernet) & “D-Link Green” features |
| LED indicators | Per-port: Link/Activity, Speed (100 Mbps), plus device Power LED |
| Metal case / dimensions / weight | Approx. 280 × 180 × 44 mm; Weight ~1.9-2.0 kg (≈4.19 lbs) |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | −10 °C to ~70 °C |
| Operating humidity | 5-90% RH (non-condensing) |
| Power input | Universal AC input 100-240 VAC, 50/60 Hz; internal PSU |
| Power consumption | From listings: typical / max ~2.8 W; standby ~1.17 W in some sources |
| Packet buffer / memory | Some sources list ~256 KB / 2 MB per device buffer, Jumbo frame support ~2 KB in some listings. |
| Warranty | Varies by region; in many regions “limited 5-year warranty” or “limited lifetime warranty” for lifetime of ownership; power supply / fan (if any) may have shorter coverage. |
